Land Rover Defender Stainless Steel Titan Rear Step

  • Sale
  • Regular price £1,300.00


Land Rover Defender - Titan Stainless Steel Rear Step - Uproar 4x4

(Outer corner bumperettes are not included in this sale, these are a separate item.)

Please read the full description to understand the product, all information is included.

Full fitting instructions included with torque settings figures.

Spare Wheel Carrier Compatibility:

This item fits with "Standard Genuine LR," "Mantec" & "Britpart" swing away spare wheel carriers. If you have a single mount arm wheel carrier, please send us an email with a photo of the cross member mounting bracket, as we can build this item to be compatible with your specific carrier.

Specification:

  • Fully stainless steel.
  • 8mm main plate, support struts, gussets, treadplate.
  • 8 point mounted for maximum strength.
  • Satin black finish. (Gloss black available upon request)
  • Standard Land Rover M16 mount hole dimensions.
  • 3mm laser-cut box section integrated for strength and design.
  • Removable electric socket holder.
  • Extreme hi-tensile Bumax 316 shanked stainless fixings included for full installation.
  • Chemically dipped black Bumax bolts.
  • All laser-cut edges are sanded/rounded on the entire item prior to paint.
  • Twin layered treadplate with button head bolt inserts for grip.
  • CNC machined 8mm main treadplate.
  • 3500KG capacity
  • Glass bead blasted prior to paint for superior adhesion.
  • Two separate mountable tow attachments available to buy. M16 mounting hole dimensions are the same width as the M16 threaded hole crossmember dimensions for use with your own attachments.
  • Fits all Defender 90 & 110 models from 1983 onwards. (Excluding Hi Capacity Pickups & Wolf Defenders. Please email us a photo if you have a Hi-Capacity pickup so we can check if it will fit. Some do and some do not).

Description:

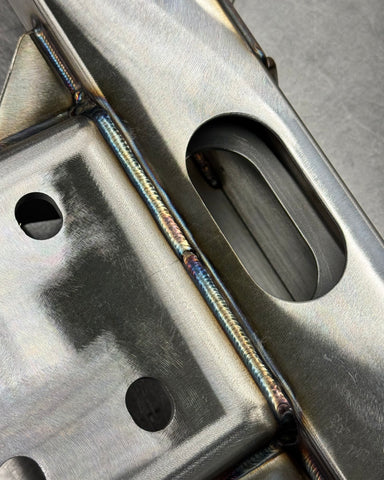

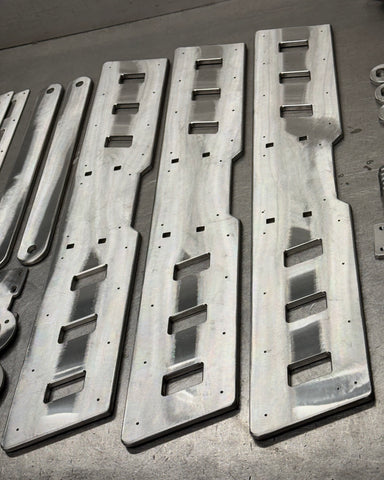

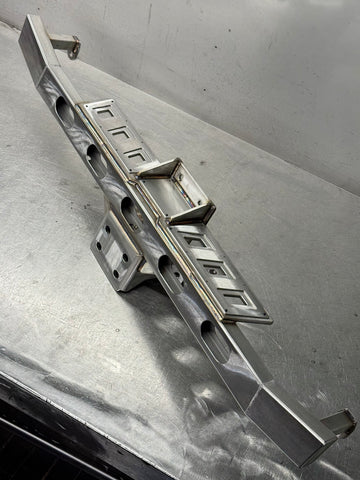

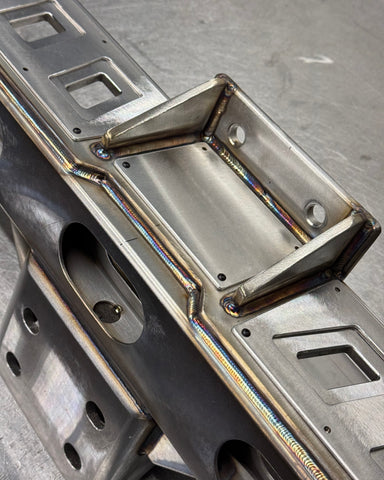

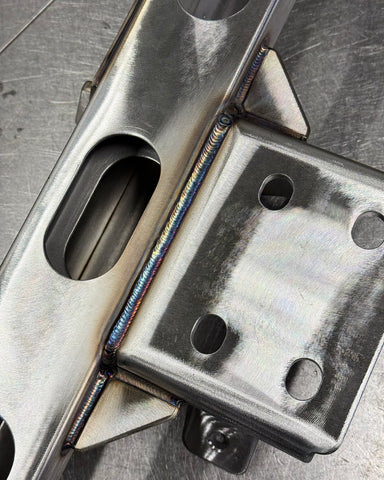

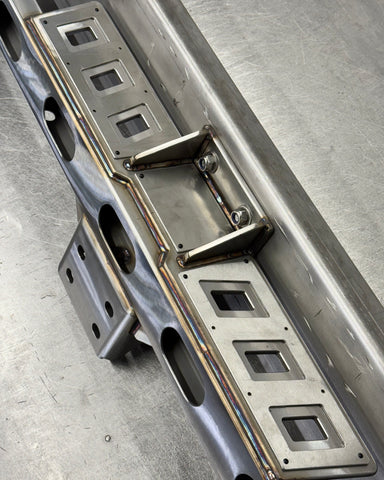

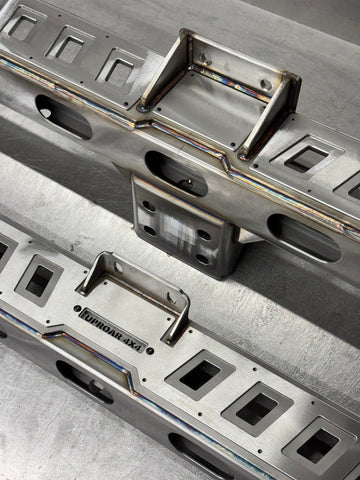

The Titan Rear Step is a fully stainless steel rear recovery step that has been built to the highest standards of fabrication.  Our fabrication processes include laser-cutting, CNC machining, edge sanding/rounding, TIG welding & bead blasting. It has incredible strength due to its 8mm thick construction, whilst acting as a recovery point, and also gives great protection to the rear end of the vehicle.

4 years of design and development have been untaken to bring you the Titan rear step as you see it today. We have spent endless hours, testing, pulling, designing & fabricating through multiple prototypes. inspired by the Defender NAS Rear Step, we wanted to make something with the same strength but with a unique design.

The Titan Rear Step is capable of pulling or with-standing 3500KG of weight.

The step position is 150mm down from the floor of the boot and so acts well for entering or exiting the rear of the vehicle. The treadplate consists of two layers. The main treadplate housing which is 8mm thick and CNC machined & the top plate finishers which are connected via threaded hole and M3 button head bolts. The twin layering of the treadplate and use of bolts gives good surface grip when stood on.

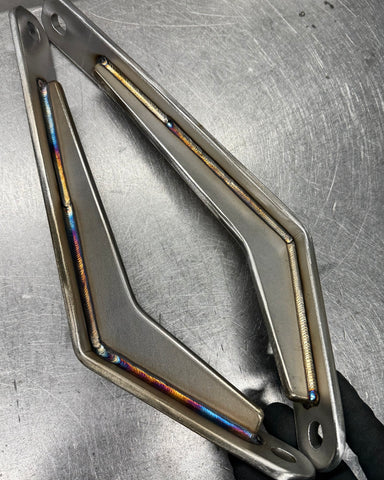

The Titan Rear Step fits 110 & 90 Defenders in the same way except for the struts underneath that connect back to the chassis legs. You can see the 90 & 110 struts and their differences in the last photo. (90s have straight struts) (110s have angled struts). Select your model from the drop down menu.

The Titan rear step comes as a base model and has the ability for attachments to be connected to it. There are two recovery attachments available to purchase alongside the rear step (see drop down "Attachments" menu) & (Attachment description below)

We glass bead blast the bumper prior to paint for superior paint adhesion. Glass bead blasting is a time consuming and costly process, more so than other types of blasting. However glass bead blasting is one of the only medias that can be used on stainless steel to key/clean it prior to paint.

Attachments:

  • 23mm Hole & WARN shackle:

This consists of a 23mm diameter tow eye hole made from a 20mm thick tow eye plate and 10mm thick base. Similarly, these items, also fully made from stainless steel, receive full rounding/sanding on every laser-cut edge before assembly. We meticulously prepare the welded areas with V plate prepping, plate welding, and rear plugging to guarantee a solid bind. Additionally, we CNC machine a 5mm radius on either side of the inner tow eye hole for a smooth finish. This hole is classified as a general-use hook/rope hole. The inner tow eye hole has a 5mm radius CNC machined on either side of it for a smooth finish.

Included is a WARN epic shackle with a capacity of 8 tonnes pulling force. This has a 22mm diameter pin that fits into the 23mm diameter tow eye hole.

We have made our own HD rubber washers to fit inside the shackle between the pin and the body. This means that the shackle does not swing when driving and also reduces rubbing during operational movement. (The shackle is made from forged steel with a heavy duty "e-coating".  See last photos to see what the different attachments look like.

  • 38mm General Hook Hole:

This consists of a 38mm diameter tow eye hole made from a 20mm thick tow eye plate and 10mm thick base. These items, constructed entirely from stainless steel, undergo full rounding/sanding on every laser-cut edge before assembly. We thoroughly prepare the welded areas with V plate prepping, plate welding, and rear plugging to ensure a solid bind. We include 4 x M16 hi tensile blackened Bumax bolts, washers, and nuts for attaching the item to the Titan rear step. The inner tow eye hole has a 5mm radius CNC machined on either side of it for a smooth finish. This is classed as a general use hook / rope hole. See last photos to see what the different attachments look like.

Prices include VAT at 20% and free UK delivery.

For export outside the UK, VAT is deducted from the sale price.

For international orders, please email: info@uproar4x4.com for a shipping price. (Please include your full address including post/zip code and the exact name and colour of the item/items you would like. We reply to all emails within 24 hours, so please check your junk email if you have not received a reply within 24 hours.)
